	TA ISO 28706-2 TA ISO 28706-4 TA ISO 4531 Cor Test Bottom Heating Waterquard TA Prot. Current TA EN ISO 4534

		Apparatus for testing acc. to ISO 28706-2 "Vitreous and porcelain enamels”

		- Determination of resistance to chemical corrosion

		- Part 2: Determination of resistance to chemical corrosion by boiling acids,

		- boiling neutral liquids and/or their vapours

complete
consisting of	acc. to ISO 28706-2
Test cylinder	clause	5.1.2.
Liebig-West reflux condenser	clause	5.1.3.
Graduated collector	clause	5.1.4.
Heater	clause	5.1.11.
Heat-controlling device	clause	5.1.12-5.1.13
Plate of borosilicate glass	clause	5.1.14
Chucking rack	clause	5.1.5 - 5.1.8.
Set of gaskets	clause	5.1.9.- 5.1.10.
(for several testing agents)	clause	6
all component parts separate available

electiv available

Insulating sleeve for heater

Power consumption can be cut down to 40%

Increased work security by reducing the surface temperature

Abbreviation of heat up time

Long durability

Fast assembly and disassembly


	Stand material: Tripod, Stand rot, Stand clamp, Double socket, Clipox ground clamp

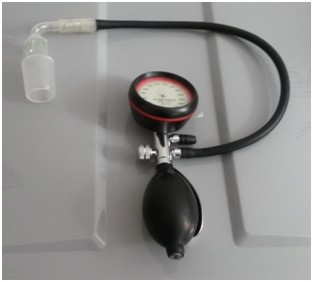

Tester of tightness

Auxiliary for checking the tightness of assembling before filling up test-medium.

Control unit for cooling water:

In case of breakdown of cooling water for the condenser
